05-23 2nd/3rd Gen Tacoma 2.5" Coilover Lift Kit

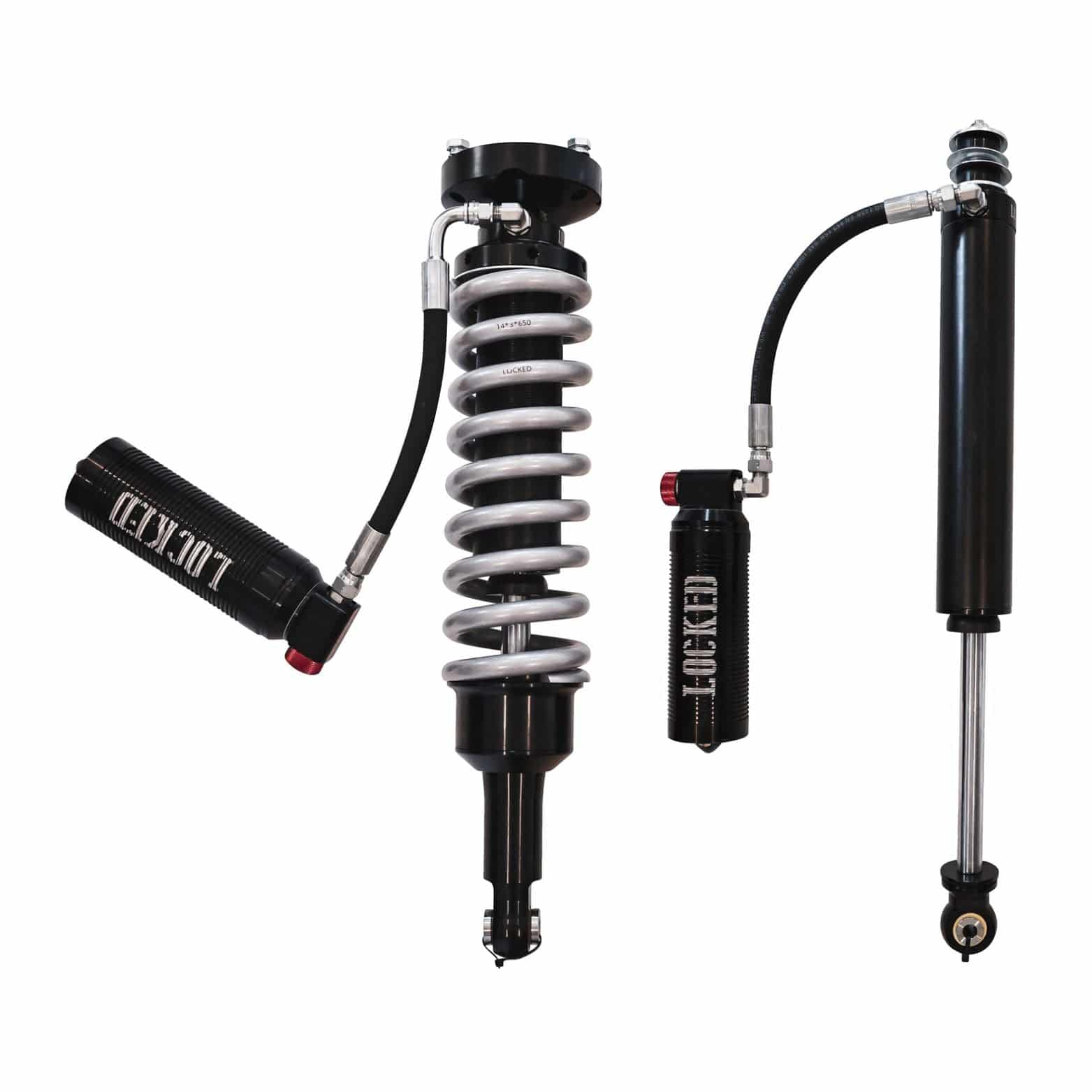

2005–2023 Toyota Tacoma 2.5" Coilover Lift Kit

Overview

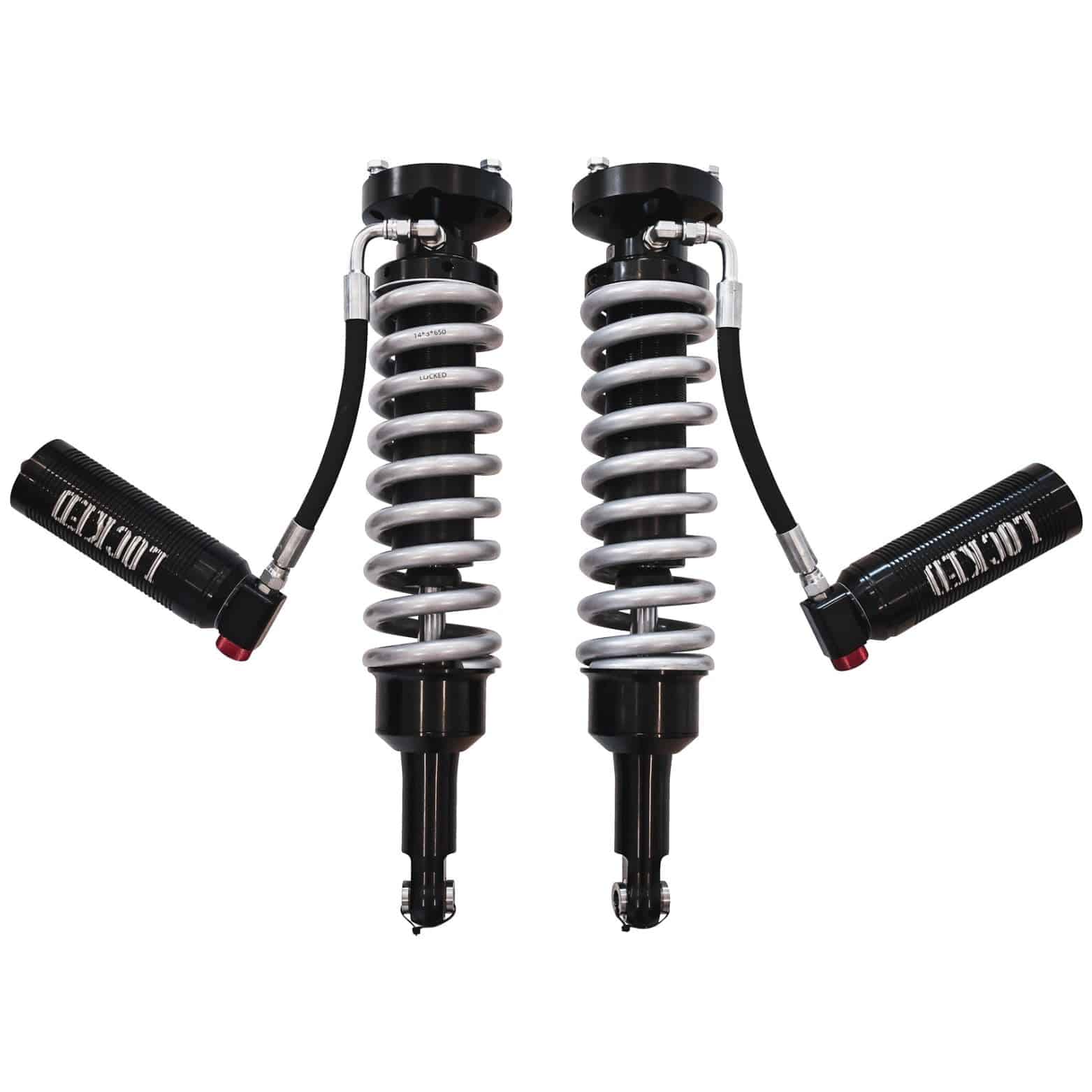

Locked Offroad’s 2.5" coilover lift kit for 2005–2023 Toyota Tacoma, with 25% more travel than OEM. Custom tuned to your vehicle and driving style. Designed, machined, and assembled in-house in Sarasota, Florida, USA.

Call or email us with your build details and driving style and we'll tune the kit to your truck.

What's in It

• Cerakote-finished 2.5" steel shock bodies for superior corrosion resistance
• Precision honed ID bore
• New 3D-machined high-flow piston design
• Huge 5/8" ID high-flow hoses

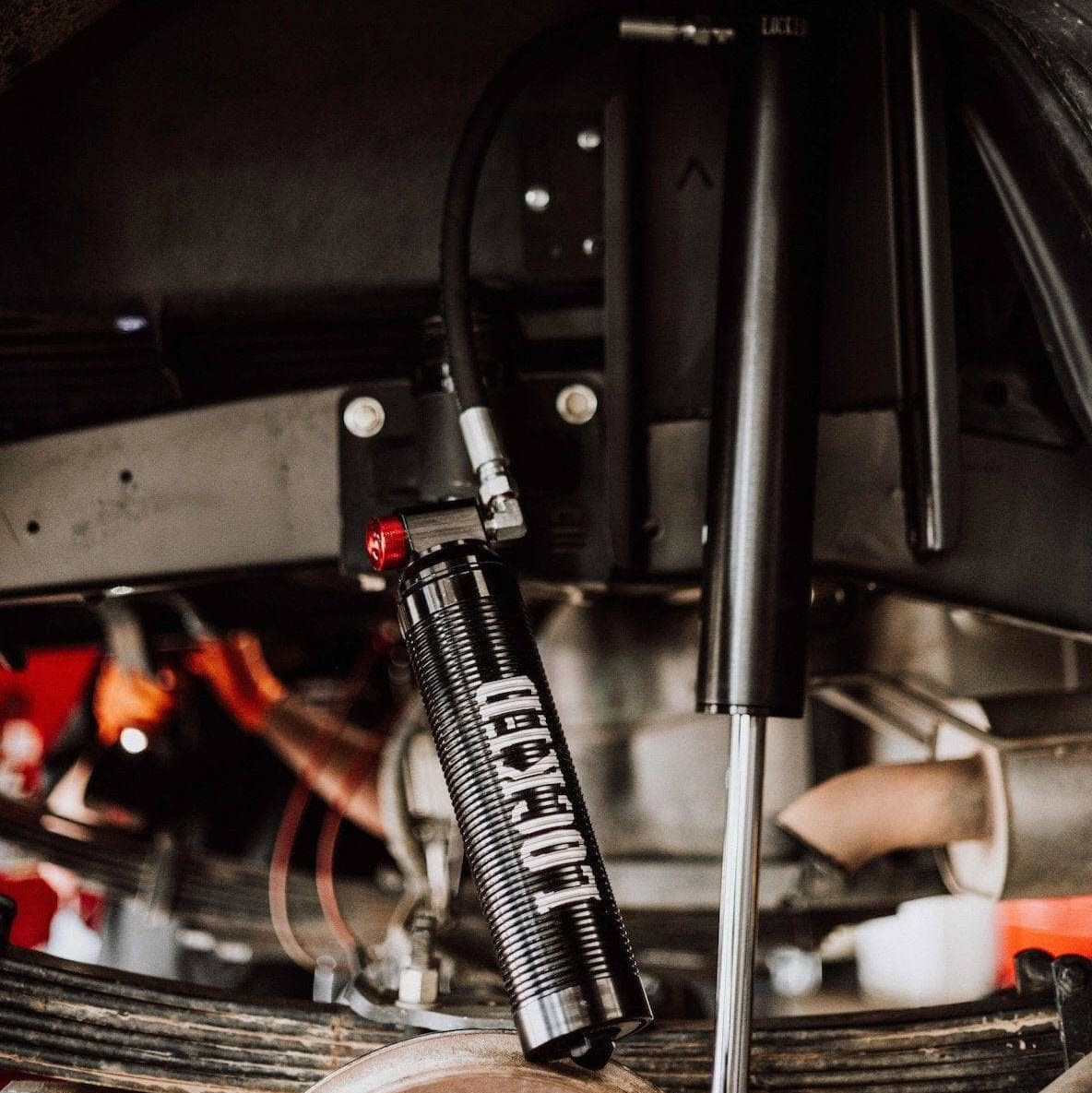

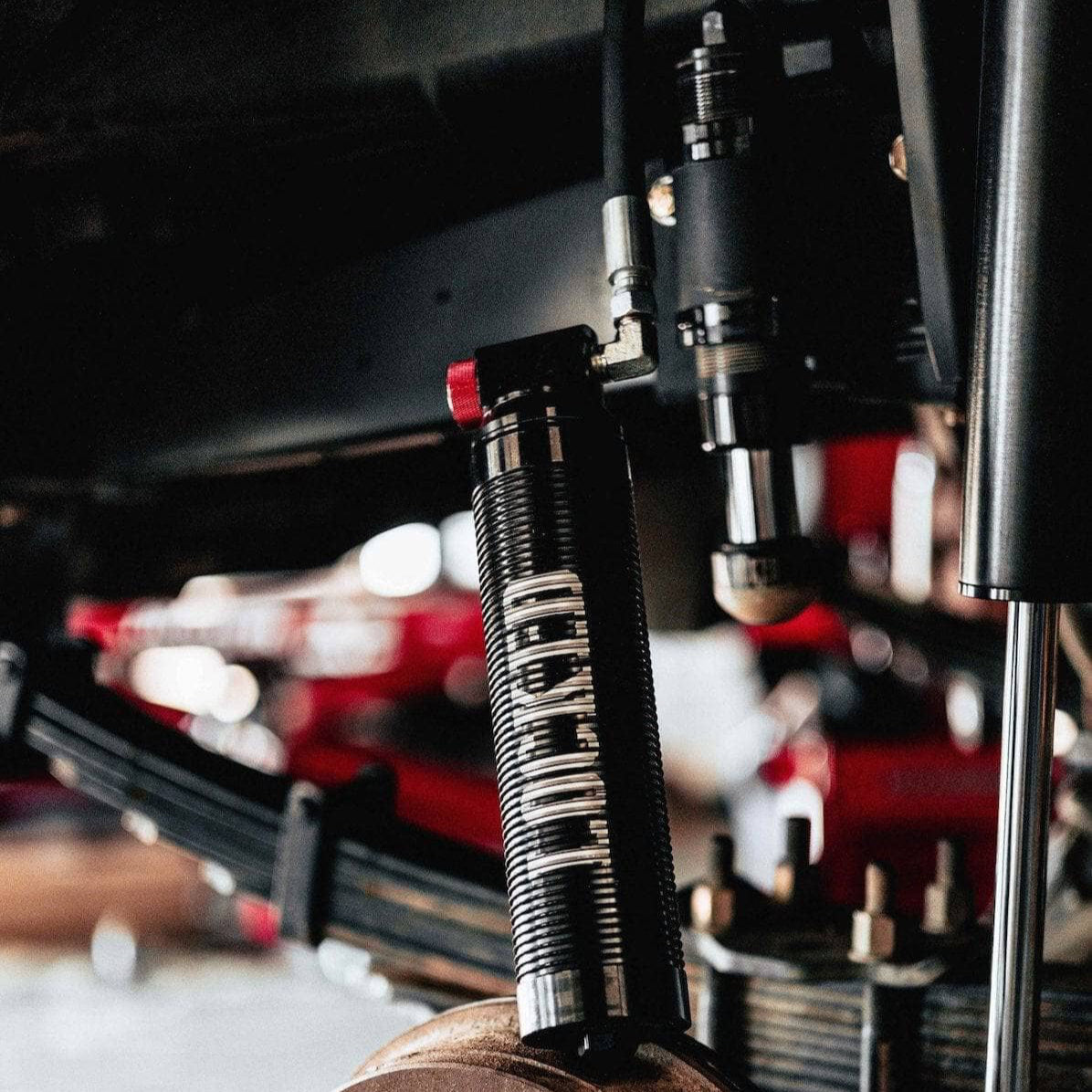

• Remote reservoirs
• ProBearing bearings for reliability
• Improved seal head with HNBR main seal and Viton O-rings
• 7/8" hard chrome shafts
• Anodized 6061 aluminum components
• Filled with Maxima Racing oil
• Adjustable ride height
• Fully rebuildable and serviceable
• Direct bolt-on installation for 2005–2023 Toyota Tacoma

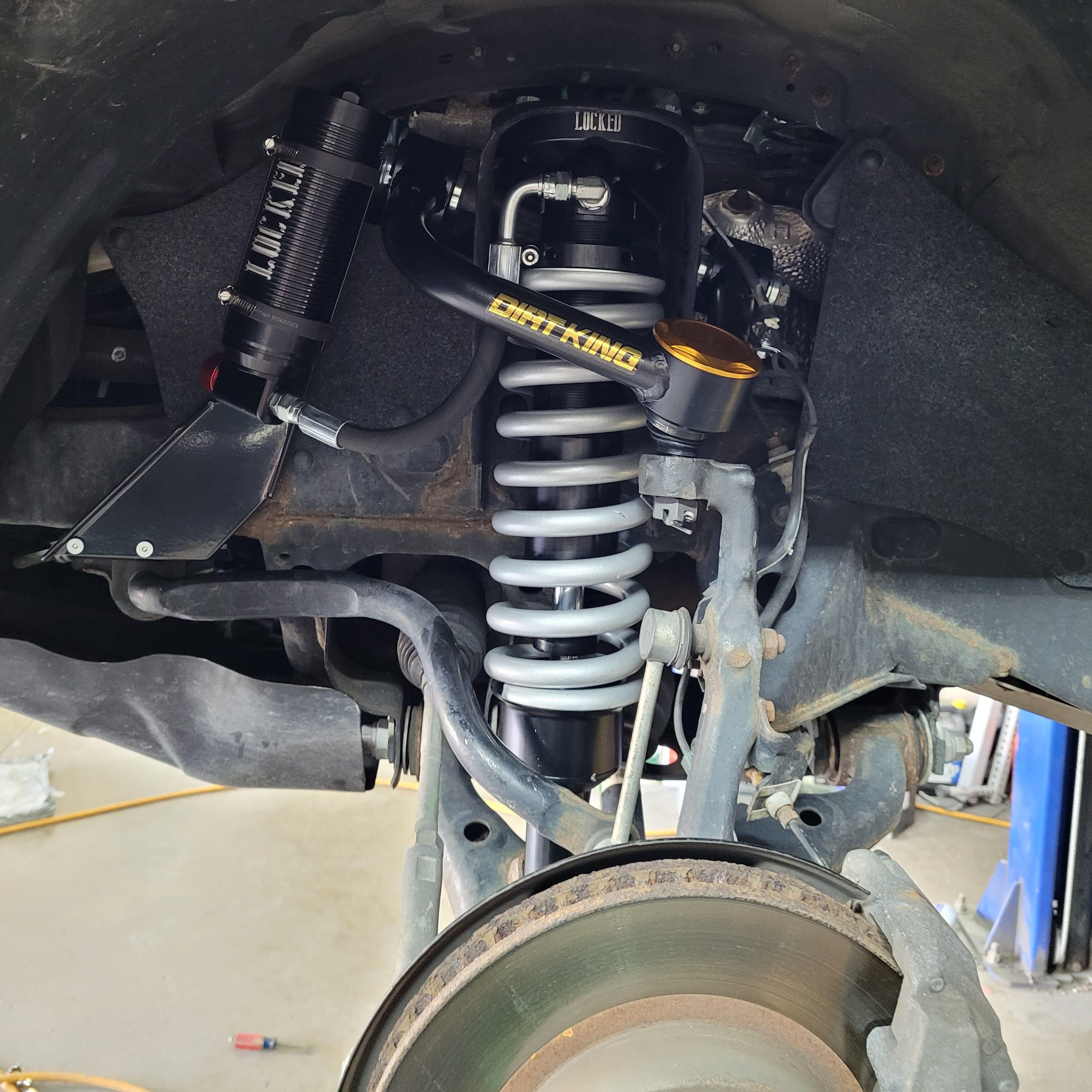

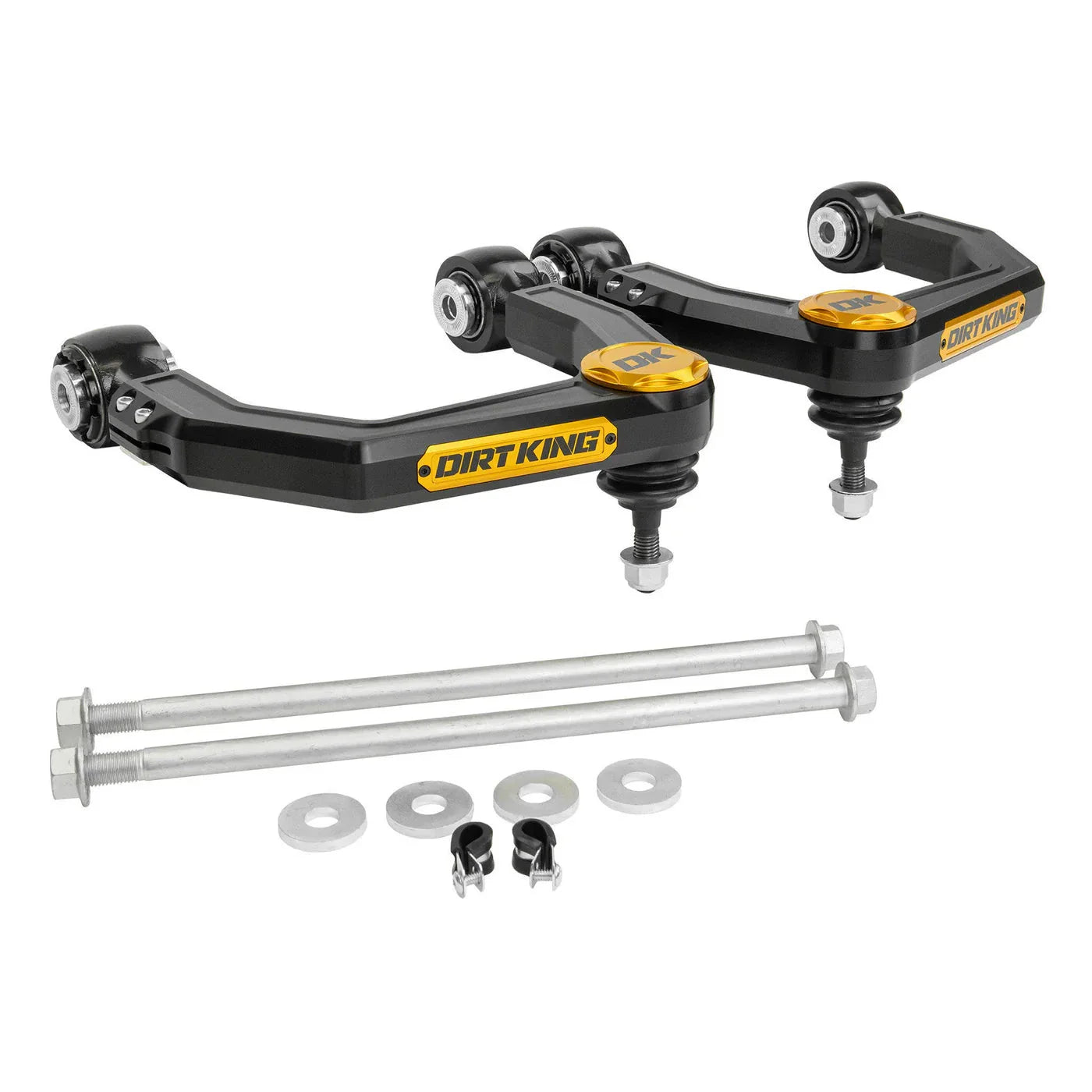

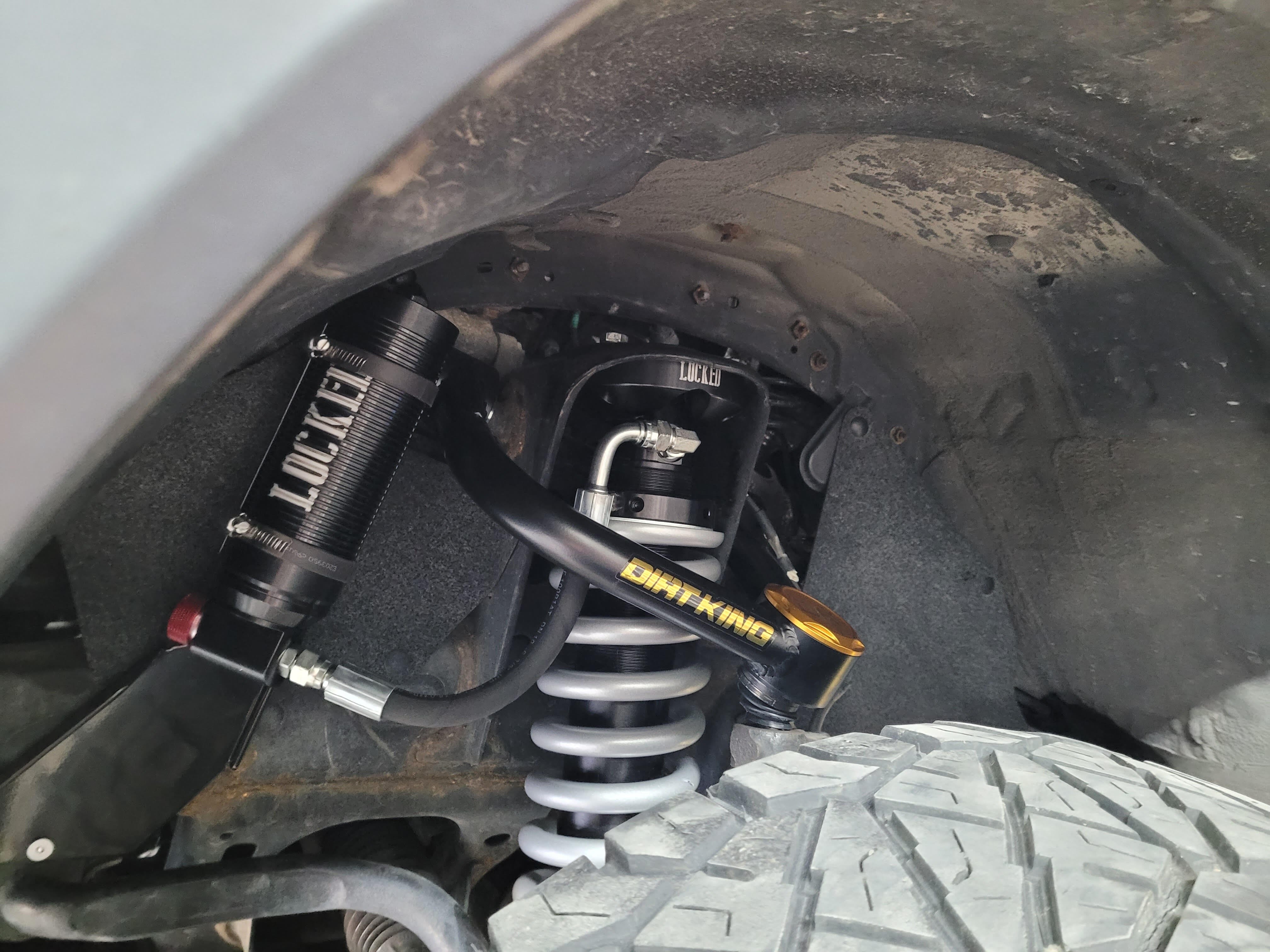

• Aftermarket upper control arms required

Spring Rate Options

• 600 lb/in – For factory weight or light modifications (closest to OEM ride)
• 650 lb/in – For a front bumper, winch, and possibly rock sliders
• 700 lb/in – For bumper, winch, rock sliders, and full skid plates

Important Notes

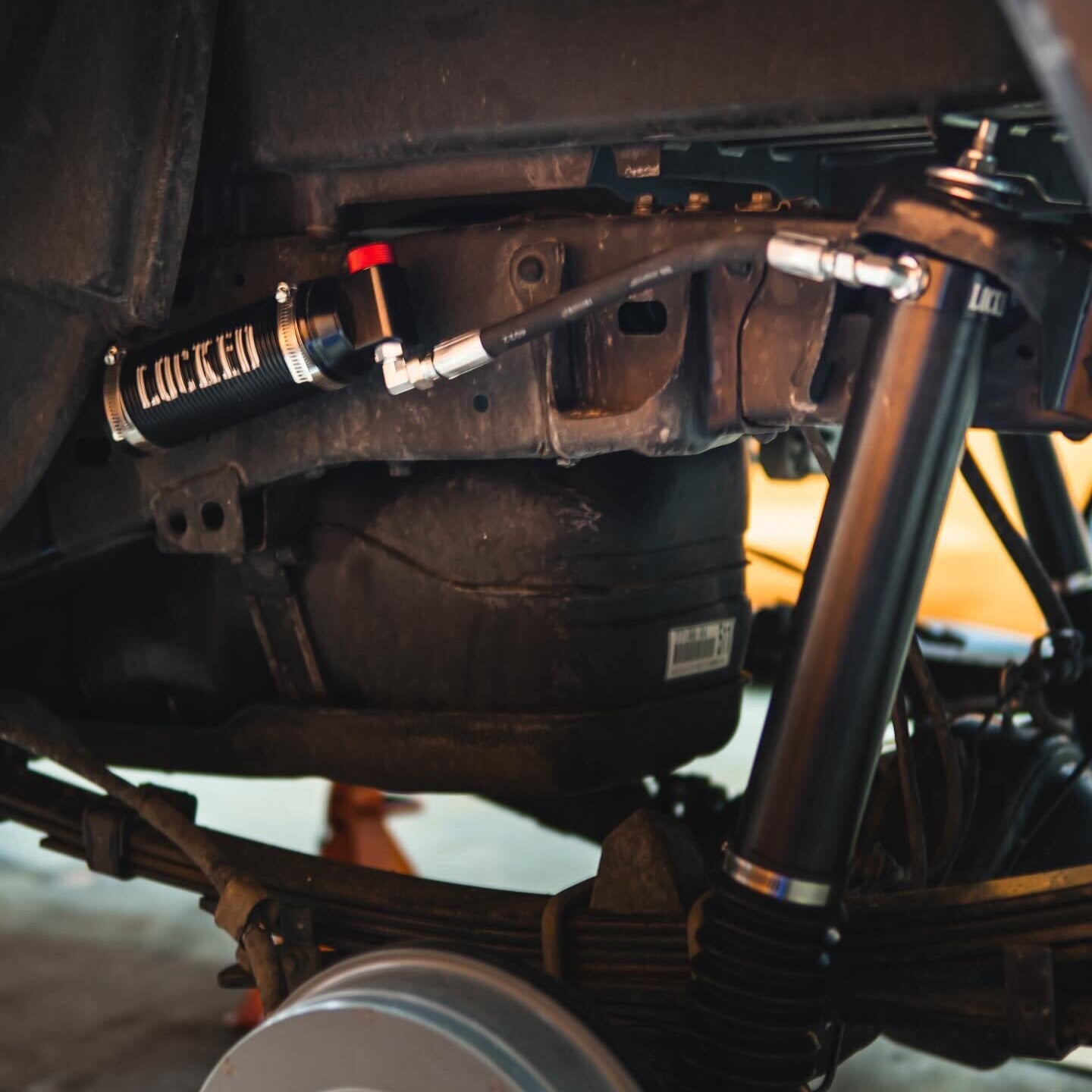

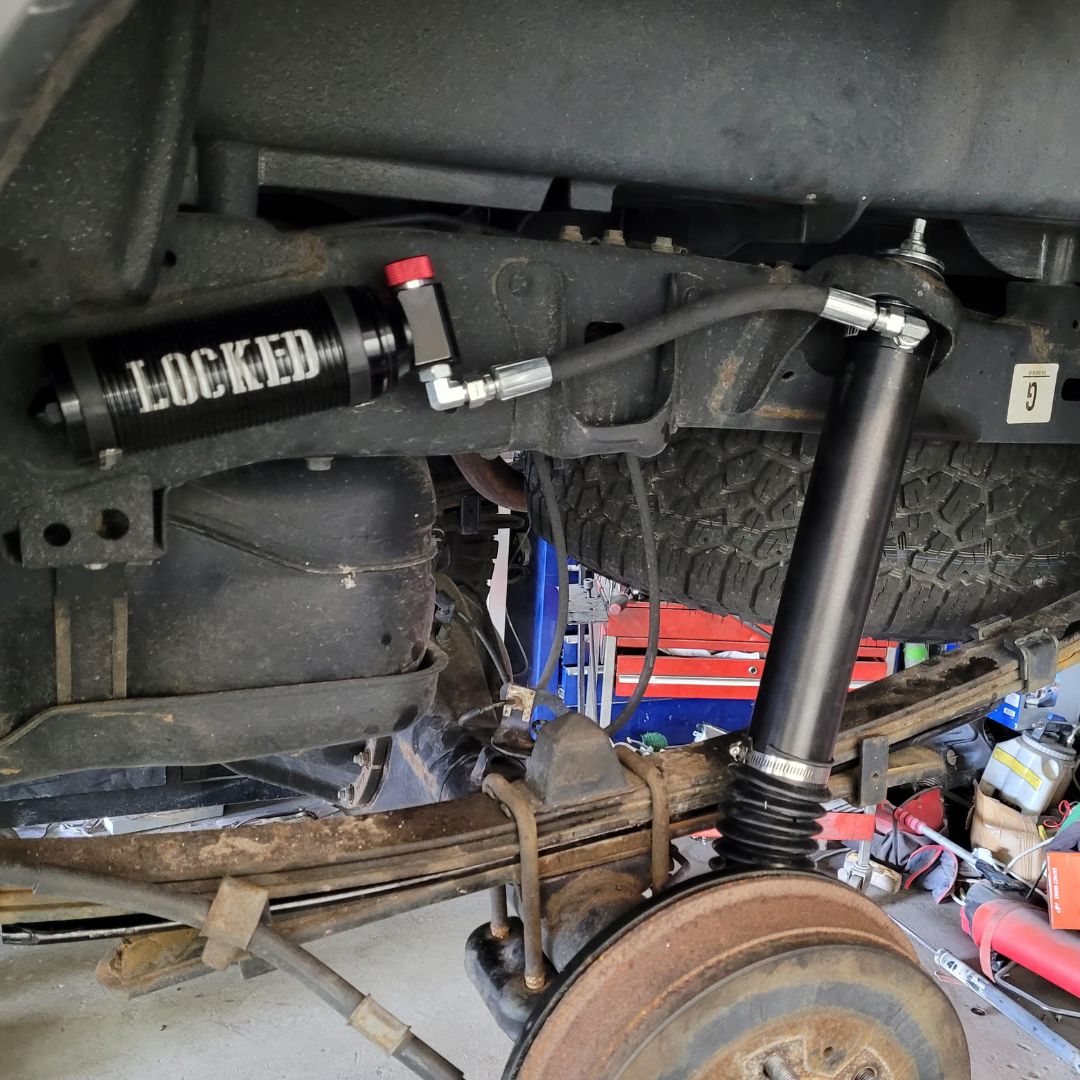

Tundra rear shock requires slight modification to the Tacomas upper shock mount. Hole will need to be widened away from the frame.

Rear shock relocation kit only required when using 12" or 14" rear smooth body shocks.
